Kirjeldus
Valge süvistatava peaga kruvi puidule
• Heaks kiidetud universaalkruvi erinevateks konstruktsioonilisteks rakendusteks, alates väiksematest ehitistest kuni puitmajade ehituseni
• Sertifitseeritud kasutamiseks CLT-l ja suure tihedusega puitmaterjalidel nagu LVL
• Väga hea terase tõmbetugevus ja voolavuspiir. Väga suur väändekindlus kindlaks kinnitamiseks

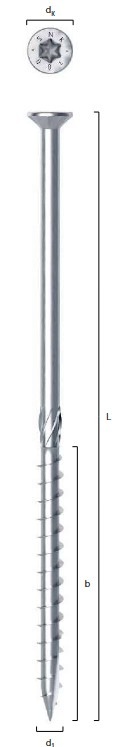

| CODE | d (mm) | d (in) | Drive | dK (mm) | dK (in) | L (mm) | L (in) | b (mm) | b (in) | A (mm) | tk |
| SNK3540 | 3.5 | 0.14 | TX 15 | 7.00 | 0.276 | 40 | 1 9/16 | 18 | 11/16 | 22 | 500 |
| SNK3550 | 3.5 | 0.14 | TX 15 | 7.00 | 0.276 | 50 | 1 15/16 | 24 | 15/16 | 26 | 400 |
| SNK440 | 4 | 0.16 | TX 20 | 8.00 | 0.315 | 40 | 1 9/16 | 24 | 15/16 | 16 | 500 |
| SNK445 | 4 | 0.16 | TX 20 | 8.00 | 0.315 | 45 | 1 3/4 | 30 | 1 3/16 | 15 | 400 |
| SNK450 | 4 | 0.16 | TX 20 | 8.00 | 0.315 | 50 | 1 15/16 | 30 | 1 3/16 | 20 | 400 |
| SNK460 | 4 | 0.16 | TX 20 | 8.00 | 0.315 | 60 | 2 3/8 | 35 | 1 3/8 | 25 | 200 |
| SNK470 | 4 | 0.16 | TX 20 | 8.00 | 0.315 | 70 | 2 3/4 | 40 | 1 9/16 | 30 | 200 |
| SNK4540 | 4.5 | 0.18 | TX 20 | 9.00 | 0.354 | 40 | 1 9/16 | 24 | 15/16 | 16 | 400 |
| SNK4545 | 4.5 | 0.18 | TX 20 | 9.00 | 0.354 | 45 | 1 3/4 | 30 | 1 3/16 | 15 | 400 |
| SNK4550 | 4.5 | 0.18 | TX 20 | 9.00 | 0.354 | 50 | 1 15/16 | 30 | 1 3/16 | 20 | 200 |
| SNK4560 | 4.5 | 0.18 | TX 20 | 9.00 | 0.354 | 60 | 2 3/8 | 35 | 1 3/8 | 25 | 200 |
| SNK4570 | 4.5 | 0.18 | TX 20 | 9.00 | 0.354 | 70 | 2 3/4 | 40 | 1 9/16 | 30 | 200 |
| SNK4580 | 4.5 | 0.18 | TX 20 | 9.00 | 0.354 | 80 | 3 1/8 | 40 | 1 9/16 | 40 | 200 |
| SNK550 | 5 | 0.20 | TX 25 | 10.00 | 0.394 | 50 | 1 15/16 | 30 | 1 3/16 | 30 | 200 |
| SNK560 | 5 | 0.20 | TX 25 | 10.00 | 0.394 | 60 | 2 3/8 | 40 | 1 9/16 | 40 | 200 |
| SNK570 | 5 | 0.20 | TX 25 | 10.00 | 0.394 | 70 | 2 3/4 | 40 | 1 9/16 | 40 | 200 |
| SNK580 | 5 | 0.20 | TX 25 | 10.00 | 0.394 | 80 | 3 1/8 | 50 | 2 | 50 | 200 |
| SNK590 | 5 | 0.20 | TX 25 | 10.00 | 0.394 | 90 | 3 1/2 | 50 | 2 | 60 | 100 |
| SNK5100 | 5 | 0.20 | TX 25 | 10.00 | 0.394 | 100 | 4 | 60 | 2 3/8 | 65 | 100 |
| SNK5120 | 5 | 0.20 | TX 25 | 10.00 | 0.394 | 120 | 4 3/4 | 60 | 2 3/8 | 85 | 100 |
| SNK660 | 6 | 0.24 | TX 30 | 12.00 | 0.472 | 60 | 2 3/8 | 40 | 1 9/16 | 40 | 100 |
| SNK670 | 6 | 0.24 | TX 30 | 12.00 | 0.472 | 70 | 2 3/4 | 50 | 2 | 45 | 100 |
| SNK680 | 6 | 0.24 | TX 30 | 12.00 | 0.472 | 80 | 3 1/8 | 50 | 2 | 50 | 100 |
| SNK690 | 6 | 0.24 | TX 30 | 12.00 | 0.472 | 90 | 3 1/2 | 60 | 2 3/8 | 60 | 100 |
| SNK6100 | 6 | 0.24 | TX 30 | 12.00 | 0.472 | 100 | 4 | 60 | 2 3/8 | 65 | 100 |
| SNK6120 | 6 | 0.24 | TX 30 | 12.00 | 0.472 | 120 | 4 3/4 | 70 | 2 3/4 | 85 | 100 |
| SNK6140 | 6 | 0.24 | TX 30 | 12.00 | 0.472 | 140 | 5 1/2 | 75 | 2 15/16 | 105 | 100 |
| SNK6160 | 6 | 0.24 | TX 30 | 12.00 | 0.472 | 160 | 6 1/4 | 75 | 2 15/16 | 125 | 100 |
| CODE | d (mm) | d (in) | Drive | dK (mm) | dK (in) | L (mm) | L (in) | b (mm) | b (in) | A (mm) | tk |
| SNK6180 | 6 | 0.24 | TX 30 | 12.00 | 0.472 | 180 | 7 1/8 | 75 | 2 15/16 | 105 | 100 |
| SNK6200 | 6 | 0.24 | TX 30 | 12.00 | 0.472 | 200 | 8 | 75 | 2 15/16 | 125 | 100 |
| SNK6220 | 6 | 0.24 | TX 30 | 12.00 | 0.472 | 220 | 8 5/8 | 75 | 2 15/16 | 145 | 100 |
| SNK6240 | 6 | 0.24 | TX 30 | 12.00 | 0.472 | 240 | 9 1/2 | 75 | 2 15/16 | 165 | 100 |
| SNK6260 | 6 | 0.24 | TX 30 | 12.00 | 0.472 | 260 | 10 1/4 | 75 | 2 15/16 | 185 | 100 |
| SNK6280 | 6 | 0.24 | TX 30 | 12.00 | 0.472 | 280 | 11 | 75 | 2 15/16 | 205 | 100 |
| SNK6300 | 6 | 0.24 | TX 30 | 12.00 | 0.472 | 300 | 11 3/4 | 75 | 2 15/16 | 225 | 100 |
| SNK880 | 8 | 0.32 | TX 40 | 14.50 | 0.571 | 80 | 3 1/8 | 52 | 2 1/16 | 28 | 100 |
| SNK8100 | 8 | 0.32 | TX 40 | 14.50 | 0.571 | 100 | 4 | 52 | 2 1/16 | 48 | 100 |
| SNK8120 | 8 | 0.32 | TX 40 | 14.50 | 0.571 | 120 | 4 3/4 | 60 | 2 3/8 | 60 | 100 |
| SNK8140 | 8 | 0.32 | TX 40 | 14.50 | 0.571 | 140 | 5 1/2 | 60 | 2 3/8 | 80 | 100 |
| SNK8160 | 8 | 0.32 | TX 40 | 14.50 | 0.571 | 160 | 6 1/4 | 80 | 3 1/8 | 80 | 100 |
| SNK8180 | 8 | 0.32 | TX 40 | 14.50 | 0.571 | 180 | 7 1/8 | 80 | 3 1/8 | 100 | 100 |
| SNK8200 | 8 | 0.32 | TX 40 | 14.50 | 0.571 | 200 | 8 | 80 | 3 1/8 | 120 | 100 |
| SNK8220 | 8 | 0.32 | TX 40 | 14.50 | 0.571 | 220 | 8 5/8 | 80 | 3 1/8 | 140 | 100 |
| SNK8240 | 8 | 0.32 | TX 40 | 14.50 | 0.571 | 240 | 9 1/2 | 80 | 3 1/8 | 160 | 100 |
| SNK8260 | 8 | 0.32 | TX 40 | 14.50 | 0.571 | 260 | 10 1/4 | 80 | 3 1/8 | 180 | 100 |
| SNK8280 | 8 | 0.32 | TX 40 | 14.50 | 0.571 | 280 | 11 | 80 | 3 1/8 | 200 | 100 |
| SNK8300 | 8 | 0.32 | TX 40 | 14.50 | 0.571 | 300 | 11 3/4 | 80 | 3 1/8 | 220 | 100 |
| SNK8320 | 8 | 0.32 | TX 40 | 14.50 | 0.571 | 320 | 12 5/8 | 80 | 3 1/8 | 240 | 100 |
| SNK8340 | 8 | 0.32 | TX 40 | 14.50 | 0.571 | 340 | 13 3/8 | 80 | 3 1/8 | 260 | 100 |
| SNK8360 | 8 | 0.32 | TX 40 | 14.50 | 0.571 | 360 | 14 1/4 | 80 | 3 1/8 | 280 | 100 |
| SNK8400 | 8 | 0.32 | TX 40 | 14.50 | 0.571 | 400 | 15 3/4 | 80 | 3 1/8 | 320 | 100 |
| SNK10100 | 10 | 0.39 | TX 50 | 17.00 | 0.669 | 100 | 4 | 60 | 2 3/8 | 40 | 50 |
| SNK10120 | 10 | 0.39 | TX 50 | 17.00 | 0.669 | 120 | 4 3/4 | 60 | 2 3/8 | 60 | 50 |
| SNK10140 | 10 | 0.39 | TX 50 | 17.00 | 0.669 | 140 | 5 1/2 | 70 | 2 3/4 | 70 | 50 |
| SNK10160 | 10 | 0.39 | TX 50 | 17.00 | 0.669 | 160 | 6 1/4 | 70 | 2 3/4 | 90 | 50 |
| SNK10180 | 10 | 0.39 | TX 50 | 17.00 | 0.669 | 180 | 7 1/8 | 70 | 2 3/4 | 110 | 50 |
| SNK10200 | 10 | 0.39 | TX 50 | 17.00 | 0.669 | 200 | 8 | 70 | 2 3/4 | 130 | 50 |
| SNK10220 | 10 | 0.39 | TX 50 | 17.00 | 0.669 | 220 | 8 5/8 | 80 | 3 1/8 | 140 | 50 |
| SNK10240 | 10 | 0.39 | TX 50 | 17.00 | 0.669 | 240 | 9 1/2 | 80 | 3 1/8 | 160 | 50 |
| SNK10260 | 10 | 0.39 | TX 50 | 17.00 | 0.669 | 260 | 10 1/4 | 80 | 3 1/8 | 180 | 50 |
| SNK10280 | 10 | 0.39 | TX 50 | 17.00 | 0.669 | 280 | 11 | 80 | 3 1/8 | 200 | 50 |
| SNK10300 | 10 | 0.39 | TX 50 | 17.00 | 0.669 | 300 | 11 3/4 | 80 | 3 1/8 | 220 | 50 |
| SNK10320 | 10 | 0.39 | TX 50 | 17.00 | 0.669 | 320 | 12 5/8 | 80 | 3 1/8 | 240 | 50 |
| SNK10340 | 10 | 0.39 | TX 50 | 17.00 | 0.669 | 340 | 13 3/8 | 80 | 3 1/8 | 260 | 50 |
| SNK10360 | 10 | 0.39 | TX 50 | 17.00 | 0.669 | 360 | 14 1/4 | 80 | 3 1/8 | 280 | 50 |
| SNK10400 | 10 | 0.39 | TX 50 | 17.00 | 0.669 | 400 | 15 3/4 | 80 | 3 1/8 | 320 | 50 |
