SCH-H

Kirjeldus

• Reguleeritav tugi terrassidele.
• Ühildub erinevate kruvide läbimõõtudega (4–8 mm).
• Lai valik pikkuseid ja katteid.

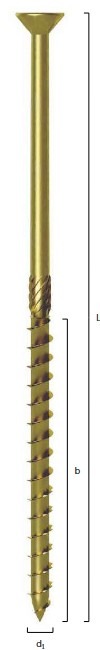

CODE	d1 (mm)	Drive	dK (mm)	L (mm)	b (mm)	A (mm)	tk
SCHH440	4	TX 20	8.00	40	24	16	500
SCHH450	4	TX 20	8.00	50	30	20	200
SCHH460	4	TX 20	8.00	60	35	25	200
SCHH470	4	TX 20	8.00	70	40	30	200
SCHH480	4	TX 20	8.00	80	40	40	200
SCHH4540	4.5	TX 20	9.00	40	24	10	200
SCHH4550	4.5	TX 20	9.00	50	30	20	200
SCHH4560	4.5	TX 20	9.00	60	35	25	200
SCHH4570	4.5	TX 20	9.00	70	40	30	200
SCHH4580	4.5	TX 20	9.00	80	40	40	200
SCHH540	5	TX 25	10.00	40	24	10	200
SCHH550	5	TX 25	10.00	50	30	20	200
SCHH560	5	TX 25	10.00	60	35	25	200
SCHH570	5	TX 25	10.00	70	40	30	100
SCHH580	5	TX 25	10.00	80	40	30	100
SCHH590	5	TX 25	10.00	90	50	30	100
SCHH5100	5	TX 25	10.00	100	55	35	100
SCHH5120	5	TX 25	10.00	120	60	40	100
SCHH660	6	TX 30	12.00	60	35	25	100
SCHH680	6	TX 30	12.00	80	50	30	100
SCHH6100	6	TX 30	12.00	100	60	40	100
SCHH6120	6	TX 30	12.00	120	60	45	100
SCHH6140	6	TX 30	12.00	140	75	60	100
SCHH6160	6	TX 30	12.00	160	90	70	100
SCHH6180	6	TX 30	12.00	180	100	80	100
SCHH6200	6	TX 30	12.00	200	100	100	100
SCHH6220	6	TX 30	12.00	220	100	120	100
SCHH6240	6	TX 30	12.00	240	100	140	100
SCHH6260	6	TX 30	12.00	260	100	160	100
SCHH6280	6	TX 30	12.00	280	100	180	100
SCHH6300	6	TX 30	12.00	300	100	200	100
SCHH6320	6	TX 30	12.00	320	100	220	100
SCHH6340	6	TX 30	12.00	340	100	240	100
SCHH6360	6	TX 30	12.00	360	100	260	100
SCHH8100	8	TX 40	16.00	100	60	40	100
SCHH8120	8	TX 40	16.00	120	80	40	100
SCHH8140	8	TX 40	16.00	140	80	60	100
SCHH8160	8	TX 40	16.00	160	90	70	100
SCHH8180	8	TX 40	16.00	180	90	90	100
SCHH8200	8	TX 40	16.00	200	100	100	100
SCHH8220	8	TX 40	16.00	220	100	120	100
SCHH8240	8	TX 40	16.00	240	100	140	100
SCHH8260	8	TX 40	16.00	260	100	160	100
SCHH8280	8	TX 40	16.00	280	100	180	100
SCHH8300	8	TX 40	16.00	300	100	200	100
SCHH8320	8	TX 40	16.00	320	100	220	100
SCHH8340	8	TX 40	16.00	340	100	240	100
SCHH8360	8	TX 40	16.00	360	100	260	100
