MCS
Kirjeldus
• A2 | AISI304 roostevabast terasest kruvi koos A2 seibi ja EPDM-tihendiga
• Kõrge korrosioonikindlus. Saadaval erinevates värvitoonides: vaskne, šokolaadipruun, helehall
• Kumer pea TX-soonega, metallist katuste, pergolate või krohvitud aluspindade kinnitamiseks
• Sobib välistingimustesse ja agressiivsetesse keskkondadesse. Klassid 1–2–3

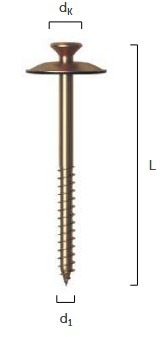

| CODE | d1 (mm) | d1 (in) | Drive | dK (mm) | dK (in) | L (mm) | L (in) | Värv | tk |
|---|---|---|---|---|---|---|---|---|---|
| MCS4525A2 | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 25 | 1 | A2 | 200 |
| MCS4535A2 | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 35 | 1 3/8 | A2 | 200 |
| MCS4545A2 | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 45 | 1 3/4 | A2 | 200 |
| MCS4560A2 | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 60 | 2 3/8 | A2 | 200 |
| MCS4580A2 | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 80 | 3 1/8 | A2 | 200 |
| MCS45100A2 | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 100 | 4 | A2 | 200 |
| MCS45120A2 | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 120 | 4 3/4 | A2 | 200 |
| MCS4525A2M | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 25 | 1 | A2M (šokolaadipruun) | 200 |
| MCS4535A2M | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 35 | 1 3/8 | A2M (šokolaadipruun) | 200 |
| MCS4545A2M | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 45 | 1 3/4 | A2M (šokolaadipruun) | 200 |
| MCS4525CU | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 25 | 1 | CU (vaskne) | 200 |
| MCS4535CU | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 35 | 1 3/8 | CU (vaskne) | 200 |
| MCS4545CU | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 45 | 1 3/4 | CU (vaskne) | 200 |
| MCS4560CU | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 60 | 2 3/8 | CU (vaskne) | 200 |
| MCS4580CU | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 80 | 3 1/8 | CU (vaskne) | 200 |
| MCS45100CU | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 100 | 4 | CU (vaskne) | 100 |
| MCS45120CU | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 120 | 4 3/4 | CU (vaskne) | 200 |
| MCS4525A2B | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 25 | 1 | A2B (helehall) | 200 |
| MCS4535A2B | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 35 | 1 3/8 | A2B (helehall) | 200 |
| MCS4545A2B | 4.5 | 0.18 | TX 20 | 8.3 | 0.327 | 45 | 1 3/4 | A2B (helehall) | 200 |
Lisainfo
| Valige toode | MCS45100A2, MCS45100CU, MCS45120A2, MCS45120CU, MCS4525A2, MCS4525A2B, MCS4525A2M, MCS4525CU, MCS4535A2, MCS4535A2B, MCS4535A2M, MCS4535CU, MCS4545A2, MCS4545A2B, MCS4545A2M, MCS4545CU, MCS4560A2, MCS4560CU, MCS4580A2, MCS4580CU |
|---|
