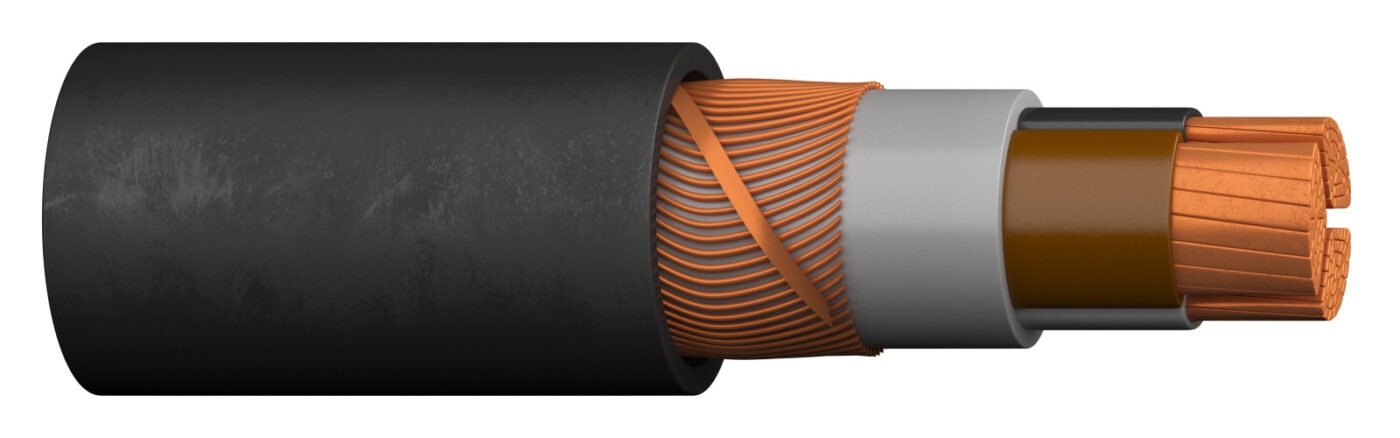

MCMK-HF C-PRO 1KV SECTOR
Kirjeldus
Halogeenivaba jõukaabel kohtkindlaks paigalduseks sise- ja välistingimustes ning pinnasesse. Samuti sobib paigaldamiseks ehitustarinditesse, näiteks otse betooni. Ei sobi paigaldamiseks EMC varjestust nõudvatesse tingimustesse (vt MCCMK).
Avasta E Path: baltics.prysmian.com/ee/e-path
Tooteinfo (20)
| Tootenr. | Konstruktsioon | Juhi kategooria | Koos kaitsejuhiga | Kaal [kg/km] | Välisläbimõõt, ligikaudne [mm] | Min. painderaadius paigaldusel [mm] | DoP nr. | Tooteleht |
|---|---|---|---|---|---|---|---|---|
| 20227775 | 3×25/16 | Klass 2 = kiuline | Jah | 1100 | 21 | 260 | 1001453 | |
| 20227776 | 3×35/16 | Klass 2 = kiuline | Jah | 1450 | 23 | 280 | 1001453 | |
| 20227777 | 3×50/25 | Klass 2 = kiuline | Jah | 1900 | 26 | 320 | 1001453 | |
| 20227778 | 3×70/35 | Klass 2 = kiuline | Jah | 2700 | 31 | 380 | 1001453 | |
| 20227779 | 3×95/50 | Klass 2 = kiuline | Jah | 3600 | 34 | 410 | 1001453 | |
| 20227780 | 3×120/70 | Klass 2 = kiuline | Jah | 4600 | 38 | 460 | 1001453 | |
| 20227781 | 3×150/70 | Klass 2 = kiuline | Jah | 5500 | 42 | 510 | 1001453 | |
| 20227782 | 3×185/95 | Klass 2 = kiuline | Jah | 6900 | 46 | 560 | 1001453 | |
| 20235491 | 3×240/120 | Klass 2 = kiuline | Jah | 9000 | 52 | 630 | 1001453 | |
| 20371097 | 3×300/150 | Klass 2 = kiuline | Jah | 11000 | 57 | 690 | 1001453 | |
| 20205617 | 4X25/16 | Klass 2 = kiuline | Jah | 1400 | 23 | 280 | 1001453 | |
| 20205618 | 4X35/16 | Klass 2 = kiuline | Jah | 1800 | 26 | 310 | 1001453 | |
| 20205619 | 4X50/25 | Klass 2 = kiuline | Jah | 2400 | 29 | 350 | 1001453 | |
| 20205620 | 4X70/35 | Klass 2 = kiuline | Jah | 3400 | 35 | 420 | 1001453 | |
| 20205621 | 4X95/50 | Klass 2 = kiuline | Jah | 4600 | 38 | 470 | 1001453 | |
| 20205622 | 4X120/70 | Klass 2 = kiuline | Jah | 5800 | 42 | 510 | 1001453 | |
| 20205623 | 4X150/70 | Klass 2 = kiuline | Jah | 7000 | 47 | 570 | 1001453 | |
| 20205624 | 4X185/95 | Klass 2 = kiuline | Jah | 8700 | 52 | 630 | 1001453 | |
| 20205625 | 4X240/120 | Klass 2 = kiuline | Jah | 12000 | 59 | 720 | 1001453 | |
| 20205626 | 4X300/150 | Klass 2 = kiuline | Jah | 14000 | 65 | 780 | 1001453 |
Konstruktsioon
| Voolujuhi materjal | Vask |
|---|---|
| Juhi pind | Paljas |
| Juhi isolatsioonimaterjal | XLPE |
| Soonte tähistus vastavalt HD 308 S2 | Jah |
| Kontsentriline juht | Vask |
| Välismantli materjal | Halogeenivaba polümeer |
| Nimipinge U0 [V] | 600 |
| Nimipinge U [V] | 1000 |
| UV-kindel | Jah |
Kasutusomadused
| Juhi suurim temperatuur [°C] | 90 |
|---|---|
| Soone lühisvoolu temperatuur (maks) [°C] | 250 |
| Min. töötemperatuur kohtkindlalt [°C] | -40 |
| UV-kindel | Jah |
| Min. käsitlustemperatuur [°C] | -15 |
| Painderaadius (loogika) | 12x OD |
Põlemisomadused
| Tuld hülgav | Vastavalt EN 13501-6 |
|---|---|
| Halogeenivaba | Jah |
| Tulereaktsiooni klass vastavalt EN 13501-6 | Cca |
| Suitsu teke vastavalt EN 13501-6 | s1 |
| Põlevad tilgad/osakesed vastavalt EN 13501-6 | d1 |
| Happesus vastavalt EN 13501-6 | a1 |
| UV kindel | Jah |
Elektrilised andmed 2 (20)
| Tootenr. | Konstruktsioon | Soone takistus 20°C juures [Ohm/km] | Soone lühisvool (1s) [kA] | Koormusvool õhus [A] | Koormusvool pinnases [A] | Tõmbejõud tõmbepeaga [N] | Tõmbejõud tõmbesukaga [N] |
|---|---|---|---|---|---|---|---|
| 20227775 | 3×25/16 | 0.727 | 3.6 | 132 | 130 | 3700 | 1500 |
| 20227776 | 3×35/16 | 0.524 | 5 | 164 | 160 | 5200 | 2100 |
| 20227777 | 3×50/25 | 0.387 | 7.2 | 200 | 190 | 7500 | 3000 |
| 20227778 | 3×70/35 | 0.268 | 10 | 256 | 240 | 10000 | 4200 |
| 20227779 | 3×95/50 | 0.193 | 13.6 | 310 | 285 | 14000 | 5700 |
| 20227780 | 3×120/70 | 0.153 | 17.2 | 360 | 325 | 18000 | 7200 |
| 20227781 | 3×150/70 | 0.124 | 21.5 | 415 | 370 | 20000 | 8500 |
| 20227782 | 3×185/95 | 0.0991 | 26.5 | 474 | 420 | 20000 | 8500 |
| 20235491 | 3×240/120 | 0.0754 | 34.3 | 560 | 480 | 20000 | 8500 |
| 20371097 | 3×300/150 | 0.0601 | 43.1 | 20000 | 8500 | ||
| 20205617 | 4X25/16 | 0.727 | 3.6 | 132 | 130 | 5000 | 2000 |
| 20205618 | 4X35/16 | 0.524 | 5 | 164 | 160 | 7000 | 2800 |
| 20205619 | 4X50/25 | 0.387 | 7.2 | 200 | 190 | 10000 | 4000 |
| 20205620 | 4X70/35 | 0.268 | 10 | 256 | 240 | 14000 | 5600 |
| 20205621 | 4X95/50 | 0.193 | 13.6 | 310 | 285 | 19000 | 7600 |
| 20205622 | 4X120/70 | 0.153 | 17.2 | 360 | 325 | 20000 | 8500 |
| 20205623 | 4X150/70 | 0.124 | 21.5 | 415 | 370 | 20000 | 8500 |
| 20205624 | 4X185/95 | 0.0991 | 26.5 | 474 | 420 | 20000 | 8500 |
| 20205625 | 4X240/120 | 0.0754 | 34.3 | 560 | 480 | 20000 | 8500 |
| 20205626 | 4X300/150 | 0.0601 | 43.1 | 646 | 550 | 20000 | 8500 |
