Kirjeldus

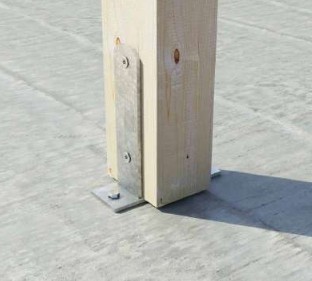

• Bracket post base suitable for square or rectangular columns of any width
• In the event of rain, the column remains exposed to the air on two sides for quick drying
• 5 mm thickness for excellent resistance
TEHNILISED ANDMED
| CODE | Sisemine mõõt (mm) | Kõrgus (mm) | Paksus (mm) | Alus (mm) | Aluse augud | Samba augud | tk |
|---|---|---|---|---|---|---|---|
| M3070 | 71 x 50 | 200 | 5,0 | 160 x 60 | 2 x Ø11,5 | 4 x Ø11 | 1 |
| M3080 | 81 x 50 | 200 | 5,0 | 170 x 60 | 2 x Ø11,5 | 4 x Ø11 | 1 |
| M3090 | 91 x 50 | 200 | 5,0 | 180 x 60 | 2 x Ø11,5 | 4 x Ø11 | 1 |
| M30100 | 101 x 50 | 200 | 5,0 | 190 x 60 | 2 x Ø11,5 | 4 x Ø11 | 1 |
| M30120 | 121 x 50 | 200 | 5,0 | 210 x 60 | 2 x Ø11,5 | 4 x Ø11 | 1 |
