Kirjeldus

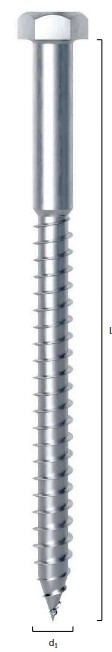

• Kruvi kuuskantpeaga
• Vastab DIN 571 standardile
• Sobib puidust konstruktsioonidele
• Kruvid on saadaval läbimõõduga 8–16 mm ja pikkusega kuni 400 mm
| CODE | d1 (mm) | d1 (in) | Drive | L (mm) | L (in) | tk |
| CODE | d1 (mm) | d1 (in) | Drive | L (mm) | L (in) | tk |
| KOP850 | 8 | 0.32 | SW 13 | 50 | 1 15/16 | 100 |
| KOP860 | 8 | 0.32 | SW 13 | 60 | 2 3/8 | 100 |
| KOP870 | 8 | 0.32 | SW 13 | 70 | 2 3/4 | 100 |
| KOP880 | 8 | 0.32 | SW 13 | 80 | 3 1/8 | 100 |
| KOP8100 | 8 | 0.32 | SW 13 | 100 | 4 | 50 |
| KOP8120 | 8 | 0.32 | SW 13 | 120 | 4 3/4 | 50 |
| KOP8140 | 8 | 0.32 | SW 13 | 140 | 5 1/2 | 50 |
| KOP8160 | 8 | 0.32 | SW 13 | 160 | 6 1/4 | 50 |
| KOP8180 | 8 | 0.32 | SW 13 | 180 | 7 1/8 | 50 |
| KOP8200 | 8 | 0.32 | SW 13 | 200 | 8 | 50 |
| KOP1050 | 10 | 0.40 | SW 17 | 50 | 1 15/16 | 50 |
| KOP1060 | 10 | 0.40 | SW 17 | 60 | 2 3/8 | 50 |
| KOP1080 | 10 | 0.40 | SW 17 | 80 | 3 1/8 | 50 |
| KOP10100 | 10 | 0.40 | SW 17 | 100 | 4 | 50 |
| KOP10120 | 10 | 0.40 | SW 17 | 120 | 4 3/4 | 50 |
| KOP10140 | 10 | 0.40 | SW 17 | 140 | 5 1/2 | 50 |
| KOP10150 | 10 | 0.40 | SW 17 | 150 | 6 | 50 |
| KOP10160 | 10 | 0.40 | SW 17 | 160 | 6 1/4 | 50 |
| KOP10180 | 10 | 0.40 | SW 17 | 180 | 7 1/8 | 50 |
| KOP10200 | 10 | 0.40 | SW 17 | 200 | 8 | 50 |
| KOP10220 | 10 | 0.40 | SW 17 | 220 | 8 5/8 | 50 |
| KOP10240 | 10 | 0.40 | SW 17 | 240 | 9 1/2 | 50 |
| KOP10260 | 10 | 0.40 | SW 17 | 260 | 10 1/4 | 50 |
| KOP10280 | 10 | 0.40 | SW 17 | 280 | 11 | 50 |
| KOP10300 | 10 | 0.40 | SW 17 | 300 | 11 3/4 | 50 |
| KOP1250 | 12 | 0.48 | SW 19 | 50 | 1 15/16 | 50 |
| KOP1260 | 12 | 0.48 | SW 19 | 60 | 2 3/8 | 50 |
| KOP1270 | 12 | 0.48 | SW 19 | 70 | 2 3/4 | 50 |
| KOP1280 | 12 | 0.48 | SW 19 | 80 | 3 1/8 | 50 |
| KOP1290 | 12 | 0.48 | SW 19 | 90 | 3 1/2 | 50 |
| KOP12100 | 12 | 0.48 | SW 19 | 100 | 4 | 25 |
| KOP12120 | 12 | 0.48 | SW 19 | 120 | 4 3/4 | 25 |
| KOP12140 | 12 | 0.48 | SW 19 | 140 | 5 1/2 | 25 |
| KOP12150 | 12 | 0.48 | SW 19 | 150 | 6 | 25 |
| KOP12160 | 12 | 0.48 | SW 19 | 160 | 6 1/4 | 25 |
| KOP12180 | 12 | 0.48 | SW 19 | 180 | 7 1/8 | 25 |
| KOP12200 | 12 | 0.48 | SW 19 | 200 | 8 | 25 |
| KOP12220 | 12 | 0.48 | SW 19 | 220 | 8 5/8 | 25 |
| KOP12240 | 12 | 0.48 | SW 19 | 240 | 9 1/2 | 25 |
| KOP12260 | 12 | 0.48 | SW 19 | 260 | 10 1/4 | 25 |
| KOP12280 | 12 | 0.48 | SW 19 | 280 | 11 | 25 |
| KOP12300 | 12 | 0.48 | SW 19 | 300 | 11 3/4 | 25 |
| KOP12320 | 12 | 0.48 | SW 19 | 320 | 12 5/8 | 25 |
| KOP12340 | 12 | 0.48 | SW 19 | 340 | 13 3/8 | 25 |
| KOP12360 | 12 | 0.48 | SW 19 | 360 | 14 1/4 | 25 |
| KOP12380 | 12 | 0.48 | SW 19 | 380 | 15 | 25 |
| KOP12400 | 12 | 0.48 | SW 19 | 400 | 15 3/4 | 25 |
| KOP1680 | 16 | 0.63 | SW 24 | 80 | 3 1/8 | 25 |
| KOP16100 | 16 | 0.63 | SW 24 | 100 | 4 | 25 |
| KOP16120 | 16 | 0.63 | SW 24 | 120 | 4 3/4 | 25 |
| KOP16140 | 16 | 0.63 | SW 24 | 140 | 5 1/2 | 25 |
| KOP16150 | 16 | 0.63 | SW 24 | 150 | 6 | 25 |
| KOP16160 | 16 | 0.63 | SW 24 | 160 | 6 1/4 | 25 |
| KOP16180 | 16 | 0.63 | SW 24 | 180 | 7 1/8 | 25 |
| KOP16200 | 16 | 0.63 | SW 24 | 200 | 8 | 25 |
| KOP16220 | 16 | 0.63 | SW 24 | 220 | 8 5/8 | 25 |
| KOP16240 | 16 | 0.63 | SW 24 | 240 | 9 1/2 | 25 |
| KOP16260 | 16 | 0.63 | SW 24 | 260 | 10 1/4 | 25 |
| KOP16280 | 16 | 0.63 | SW 24 | 280 | 11 | 25 |
| KOP16300 | 16 | 0.63 | SW 24 | 300 | 11 3/4 | 25 |
| KOP16320 | 16 | 0.63 | SW 24 | 320 | 12 5/8 | 25 |
| KOP16340 | 16 | 0.63 | SW 24 | 340 | 13 3/8 | 25 |
| KOP16360 | 16 | 0.63 | SW 24 | 360 | 14 1/4 | 25 |
| KOP16380 | 16 | 0.63 | SW 24 | 380 | 15 | 25 |
| KOP16400 | 16 | 0.63 | SW 24 | 400 | 15 3/4 | 25 |
