Kirjeldus
• Peen keere tagab täpse kruvimise MDF ja puidutöötlemise rakendustes.
• Keerme kogupikkus 80% kruvi pikkusest tagab maksimaalse haakumise.
• Faasitud pea ja sile alaosa sobib hästi metallhingedega.

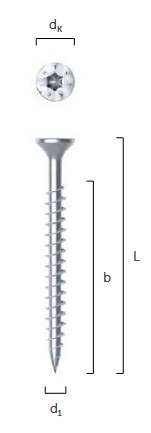

| CODE | d (mm) | d (in) | Drive | L (mm) | L (in) | b (mm) | b (in) | A (mm) | tk |
|---|---|---|---|---|---|---|---|---|---|
| HTS312H | 3 | 0.12 | TX 10 | 12 | 1/2 | 6 | 1/4 | – | 500 |
| HTS316H | 3 | 0.12 | TX 10 | 16 | 5/8 | 10 | 3/8 | – | 500 |
| HTS320H | 3 | 0.12 | TX 10 | 20 | 13/16 | 14 | 9/16 | – | 500 |
| HTS325H | 3 | 0.12 | TX 10 | 25 | 1 | 19 | 3/4 | 7 | 500 |
| HTS330H | 3 | 0.12 | TX 10 | 30 | 1 3/16 | 24 | 15/16 | 12 | 500 |
| HTS3516H | 3.5 | 0.14 | TX 15 | 16 | 5/8 | 10 | 3/8 | – | 500 |
| HTS3520H | 3.5 | 0.14 | TX 15 | 20 | 13/16 | 14 | 9/16 | – | 500 |
| HTS3525H | 3.5 | 0.14 | TX 15 | 25 | 1 | 19 | 3/4 | – | 500 |
| HTS3530H | 3.5 | 0.14 | TX 15 | 30 | 1 3/16 | 24 | 15/16 | 9 | 500 |
| HTS3535H | 3.5 | 0.14 | TX 15 | 35 | 1 3/8 | 27 | 1 1/16 | 14 | 200 |
| HTS3540H | 3.5 | 0.14 | TX 15 | 40 | 1 9/16 | 32 | 1 1/4 | 19 | 200 |
| HTS3550H | 3.5 | 0.14 | TX 15 | 50 | 1 15/16 | 42 | 1 5/8 | 29 | 200 |
| HTS420H | 4 | 0.16 | TX 20 | 20 | 13/16 | 14 | 9/16 | – | 500 |
| HTS425H | 4 | 0.16 | TX 20 | 25 | 1 | 19 | 3/4 | – | 500 |
| HTS430H | 4 | 0.16 | TX 20 | 30 | 1 3/16 | 24 | 15/16 | 6 | 500 |
| HTS440H | 4 | 0.16 | TX 20 | 40 | 1 9/16 | 32 | 1 1/4 | 16 | 200 |
| HTS450H | 4 | 0.16 | TX 20 | 50 | 1 15/16 | 42 | 1 5/8 | 26 | 200 |
| HTS4530H | 4.5 | 0.18 | TX 20 | 30 | 1 3/16 | 24 | 15/16 | 3 | 200 |
| HTS4540H | 4.5 | 0.18 | TX 20 | 40 | 1 9/16 | 32 | 1 1/4 | 13 | 200 |
| HTS4545H | 4.5 | 0.18 | TX 20 | 45 | 1 3/4 | 37 | 1 7/16 | 18 | 200 |
| HTS4550H | 4.5 | 0.18 | TX 20 | 50 | 1 15/16 | 42 | 1 5/8 | 23 | 200 |
| HTS530H | 5 | 0.20 | TX 25 | 30 | 1 3/16 | 24 | 15/16 | – | 200 |
| HTS540H | 5 | 0.20 | TX 25 | 40 | 1 9/16 | 32 | 1 1/4 | 10 | 200 |
| HTS550H | 5 | 0.20 | TX 25 | 50 | 1 15/16 | 42 | 1 5/8 | 20 | 200 |
| HTS560H | 5 | 0.20 | TX 25 | 60 | 2 3/8 | 50 | 2 | 30 | 200 |
| HTS570H | 5 | 0.20 | TX 25 | 70 | 2 3/4 | 60 | 2 3/8 | 40 | 100 |
| HTS580H | 5 | 0.20 | TX 25 | 80 | 3 1/8 | 70 | 2 3/4 | 50 | 100 |
