Kirjeldus

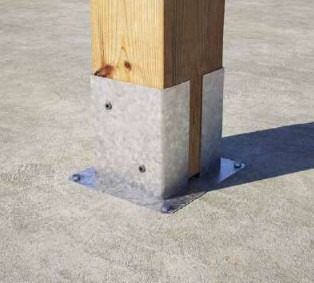

• Suitable for square or rectangular columns of any width
• The integrated riser element ensures good durability of the column
• In the event of rain, the column remains partially exposed to the air on two sides, for quick drying
TEHNILISED ANDMED
| CODE | Ümbris (mm) | Kõrgus (mm) | Paksus (mm) | Alus (mm) | Aluse augud | Ümbrise augud | tk |
|---|---|---|---|---|---|---|---|
| FD10120 | 121 x 56 | 200 | 2,5 | 200 x 95 | 2 x Ø11,5 | 2 x Ø11 | 1 |
| FD10140 | 141 x 66 | 200 | 2,5 | 220 x 105 | 2 x Ø11,5 | 2 x Ø11 | 1 |
| FD10160 | 161 x 76 | 200 | 2,5 | 240 x 115 | 2 x Ø11,5 | 2 x Ø11 | 1 |
| FD10180 | 181 x 86 | 200 | 2,5 | 260 x 125 | 2 x Ø11,5 | 2 x Ø11 | 1 |
| FD10200 | 201 x 96 | 200 | 2,5 | 280 x 135 | 2 x Ø11,5 | 2 x Ø11 | 1 |
