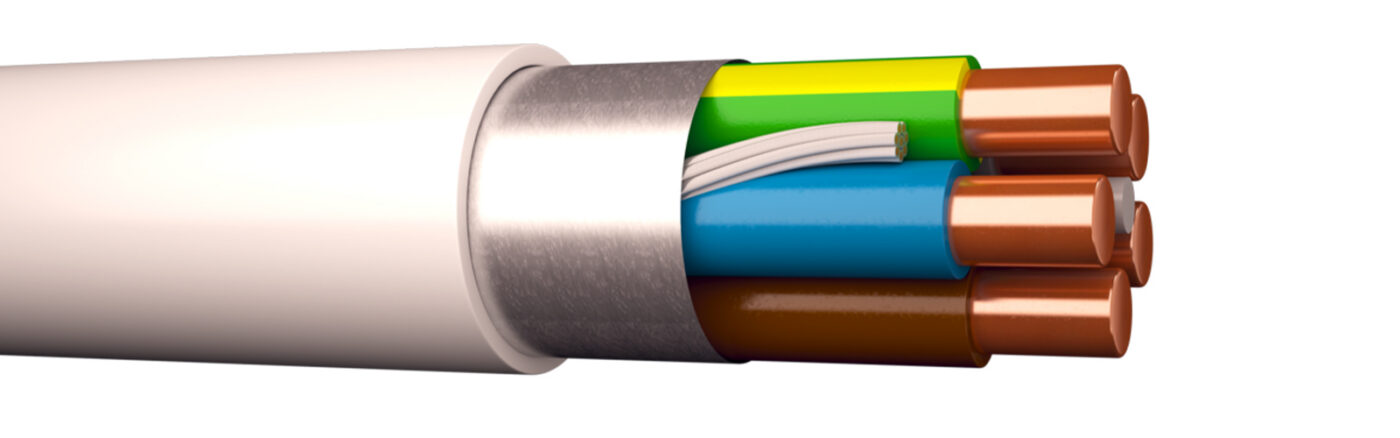

EQLQ TUBE PURE 450/750 V
Kirjeldus
Halogen-free, flame retardant and self-extinguishing cable. Smoke in the event of fire is limited, transparent (to facilitate evacuation) and not harmful to electronic equipment. Suitable for fixed installation indoors and outdoors, in pipes, duct, in or under plaster, also suspended in catenary system. The cable is not approved for EX classified areas, instead we recommend a filled cable, for example EQLQ Filled Pure. Can be installed in ground if the cable is provided with additional protection against mechanical damage. UV protected for outdoor use in the Nordic countries. The conductor insulation shall be protected against UV light in lighting fixtures and light signs.
Tooteinfo (6)
| Tootenr. | Konstruktsioon | Juhi kategooria | Koos kaitsejuhiga | Väliskatte värvus | Kaal [kg/km] | DoP nr. | Tooteleht |
|---|---|---|---|---|---|---|---|
| EE00_P_20314592 | 3G1,5 | Klass 1 = plank | Jah | Valge | 115 | 1010683 | |
| EE00_P_20314595 | 3G2,5 | Klass 1 = plank | Jah | Valge | 160 | 1010683 | |
| EE00_P_20314598 | 4G1,5 | Klass 1 = plank | Jah | Valge | 140 | 1010683 | |
| EE00_P_20314599 | 4G2,5 | Klass 1 = plank | Jah | Valge | 190 | 1010683 | |
| EE00_P_20314603 | 5G1,5 | Klass 1 = plank | Jah | Valge | 165 | 1010683 | |
| EE00_P_20314606 | 5G2,5 | Klass 1 = plank | Jah | Valge | 225 | 1001528 |
Konstruktsioon
| Voolujuhi materjal | Vask |
|---|---|
| Juhi pind | Paljas |
| Juhi isolatsioonimaterjal | XLPE |
| Välismantli materjal | Halogeenivaba polümeer |
Kasutusomadused
| Nimipinge U0/U (Um) | 450/750 V |
|---|---|
| Juhi suurim temperatuur [°C] | 70 |
| Min. töötemperatuur kohtkindlalt [°C] | -15 |
| UV-kindel | Jah |
Põlemisomadused
| Halogeenivaba | Jah |
|---|---|
| Tulereaktsiooni klass vastavalt EN 13501-6 | Dca |
| Suitsu teke vastavalt EN 13501-6 | s2 |
| Põlevad tilgad/osakesed vastavalt EN 13501-6 | d2 |
| Happesus vastavalt EN 13501-6 | a1 |
| UV kindel | Jah |
Mehhaanilised ja elektrilised andmed (6)
| Tootenr. | Konstruktsioon | Välisläbimõõt, ligikaudne [mm] | Min. painderaadius lõplikul paigaldusel [mm] | Min. painderaadius paigaldusel [mm] | Soone takistus 20°C juures [Ohm/km] | Koormusvool [A] |
|---|---|---|---|---|---|---|
| EE00_P_20314592 | 3G1,5 | 9.5 | 60 | 115 | 12.1 | 15 |
| EE00_P_20314595 | 3G2,5 | 11 | 65 | 130 | 7.41 | 20 |
| EE00_P_20314598 | 4G1,5 | 10 | 65 | 125 | 12.1 | 14 |
| EE00_P_20314599 | 4G2,5 | 11.5 | 70 | 140 | 7.41 | 19 |
| EE00_P_20314603 | 5G1,5 | 11 | 65 | 130 | 12.1 | 14 |
| EE00_P_20314606 | 5G2,5 | 12 | 75 | 150 | 7.41 | 19 |
